Powered rollers offer the latest in motorized roller design.
- The 48mm powered roller provides exceptional reliability and Eco-friendly performance at an economical price.
- The RF100B driver card allows you to easily control the start, stop, and speed functions of the powered roller.
- Connecting to a PLC makes monitoring, controlling and optimizing performance easier than ever.
Product Overview
The RF100B driver card connects directly to any 24VDC Microroller® power driven roller. The RF100B driver card uses a micro-processor to commutate the BLDC motor.
This provides the following benefits:
- Closed-loop speed control provides the ability to tune a conveyor system
- Discrete speed selection for accurate zone-to-zone speed control
- Multiple fault indications for more thorough troubleshoooting
- Dynamic braking
- CE Certified

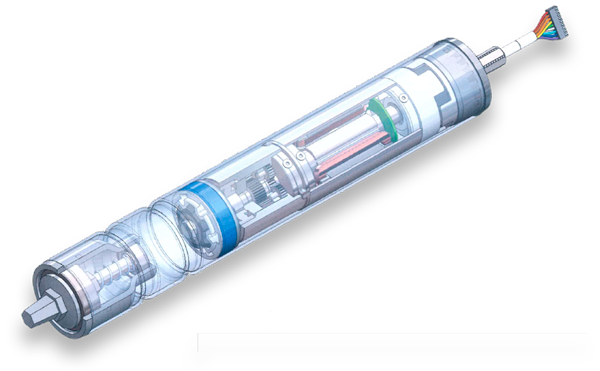

Standard Features
- 24VDC brushless motor
(thermally protected) - CE Certified
- Steel planetary gearbox
- ABEC precision bearings
- Zinc plated steel tube
- 7/16″ (11.1mm) Threaded hex shaft
- 7/16″ (non motorized end) Tapered hexshaft, spring-loaded
- 300mm cable length (longer if needed)
- JST XHP-10 pin Connector (9 pin optional)
- Maintenance-free
- Operating Environment Temperature Range of -4°F to 185°F (-20°C to 85°C)
Additional Options
- Multiple shaft configurations
- Multiple groove options
- Poly-Ribbed
- 7/16″ (11.1mm) Non-threaded hexshaft
- Lagging
- Mechanical brake
- Sprockets
- lM or 2M cable length extensions
Note: Contact Microroller for additional
options. For cable extension greater than 2M, contact Microroller.
Installation Instructions

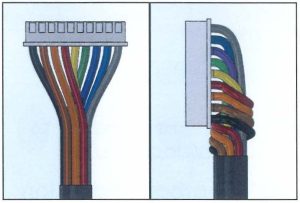

Prepare motor connector for insertion by tilting 90 degrees and twisting until the wires are taut.
Available in both 9 and 10 pin configurations.

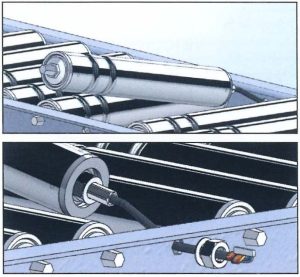

The first nut and lock washer come pre-installed on the shaft. Feedmotor connector through the 7/16" hex hole in the conveyor rail.

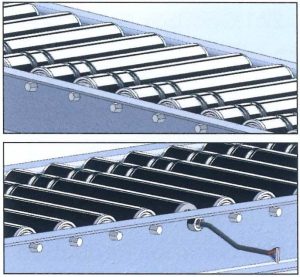

Depress spring-loaded shaft and insert into 7/16" hex hole in opposite conveyor rail.
Insert wires through the second lock washer and retaining nut. Ensure the inside nut and lock washer are tight against the inside frame. Torque retaining nut to 29 ft-lbs.
Note: Over-torquing and under-torquing may cause damage to powered rollers. Periodically inspect for recommended torque.
Specifications
Part Numbers
RF100B
Driver card for 22W and 35W rollers and 35W gear motor
Electrical Power
Termination
Plug-In Cage Clamp Terminal
Voltage Range
24VDC (+/-10%)
Current Consumption
100 mA plus motorized roller
Motor Connection
Type
Microroller powered roller or gear motor
Number
1
Termination
JST XHP-10 Pin connector
Voltage Range
24VDC
Max Average Current
2.5/3.0 Amps (22W/35W)
Control Port
Type
Current Sinking Inputs/Outputs
Number
1
Termination
Plug
Voltage Range
24VDC
Max Average Current
2.5/3.0 Amps (22W/35W)
Speed Control
Internal Potentiometer
1000-3400 rpm (22W)
1000-4000 rpm (35W)
1000-4000 rpm (35W)
External PLC
25-100% of roller speed rating
Environmental
Storage Temp
-30° to 70° C (-22° to 158° F)
Operating Temp.
0° to 60° C (32° to 140° F)
Humidity
5-95% RH, non-condensing
Vibration
2G at 10 to 500 Hz
Shock
10 G
Physical
Size
See information below
Mounting
See information below
Status Indication
See information below
Mounting Dimensions
4.5mm max holes
at 40mm x 120mm pattern
at 40mm x 120mm pattern

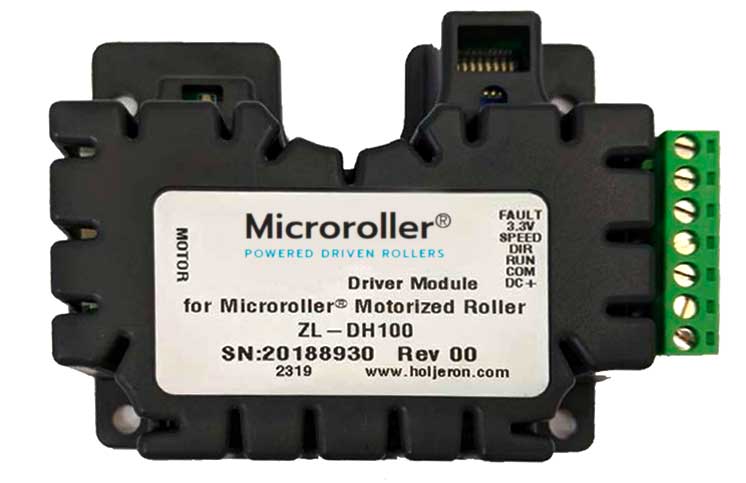

module 1

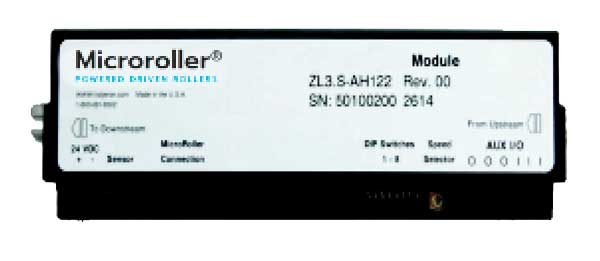

module 2
Accessories

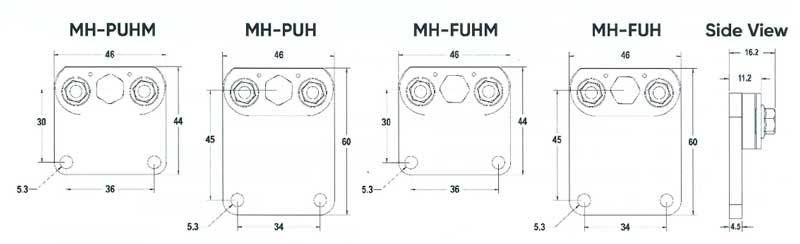

Mounting Hardware
Dimensions in mm

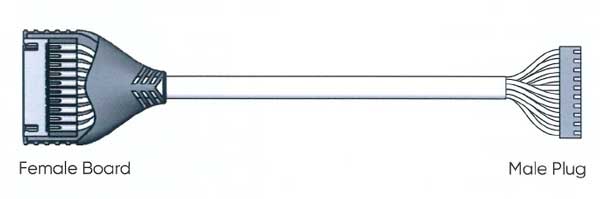

Connectors - Extension Cable
Available in 1.2M or 2M lengths - (Potentially longer in special cases)
Part Number System - How To Order
Simply choose your configuration and get your part number at the end.
Your Part Number
Download a PDF with our Part Number System
for offline use.
for offline use.
